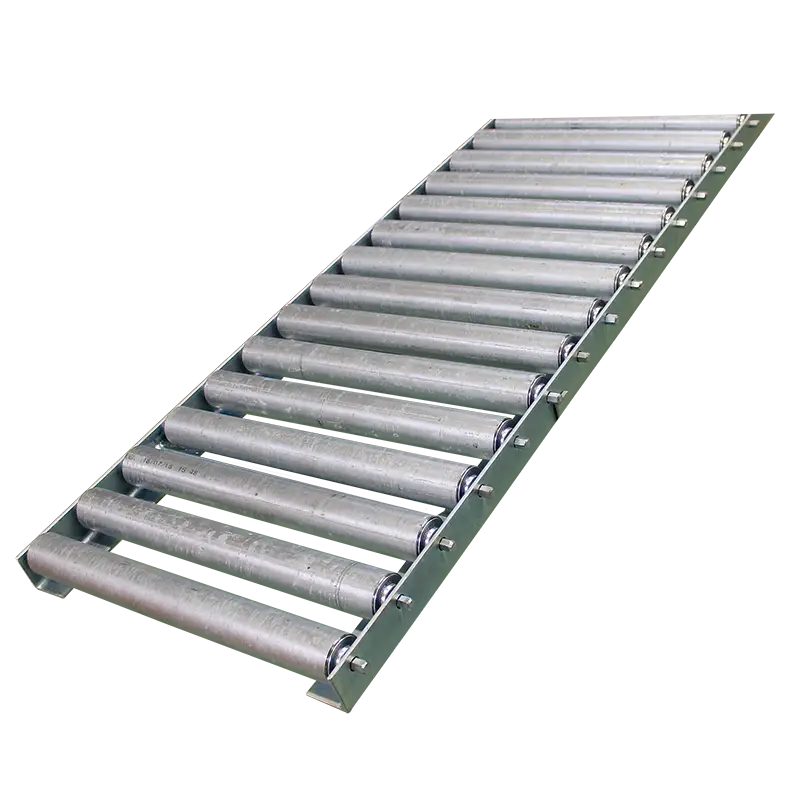

Heavy Duty Steel Conveyor 457mm x 2400mm – GHR457
Price range: $1,263.00 through $2,259.70
| Code: | GHR457 |
| Description: | Heavy Duty, 457mm Gravity Steel Roller Conveyor complete |
| Frame Length: | 2400 mm |
| Inside Frame Width: | 457mm |
| Standard Shaft Pitch Available: | 76, 114, 152mm |
| Bearing: | Ball |
Description
457mm Heavy Duty Steel Roller
160kg Capacity
Standard frame length 2400mm
Heavy-duty steel roller conveyors are designed to handle medium to heavy loads. The modular units provide efficient gravity conveying in heavy industry.
-
50 x 50 x 5 angle iron frame – 2400mm standard length
-
Standard widths (inside frame) 305mm, 355mm, 457mm and 609mm
-
48mm galvanised pipe rollers
-
Spring-loaded shafts
-
Rollers are available separately
-
Roller bends are available
Additional information
| Weight | 15 kg |
|---|---|
| Heavy Duty Steel Conveyor | GHR457 457mm Wide 2.40 Metres, 76mm Pitch ball, GHR457A 457mm Wide 2.40 Metres, 114mm Pitch ball, GHR457B 457mm Wide 2.40 Metres, 152mm Pitch ball |
