Heavy Duty Stillage Dolly
600kg Capacity
Zinc Plated Mobile Base

IDEAL FOR: Moving loaded collapsible mesh stillages and cages around your site by hand

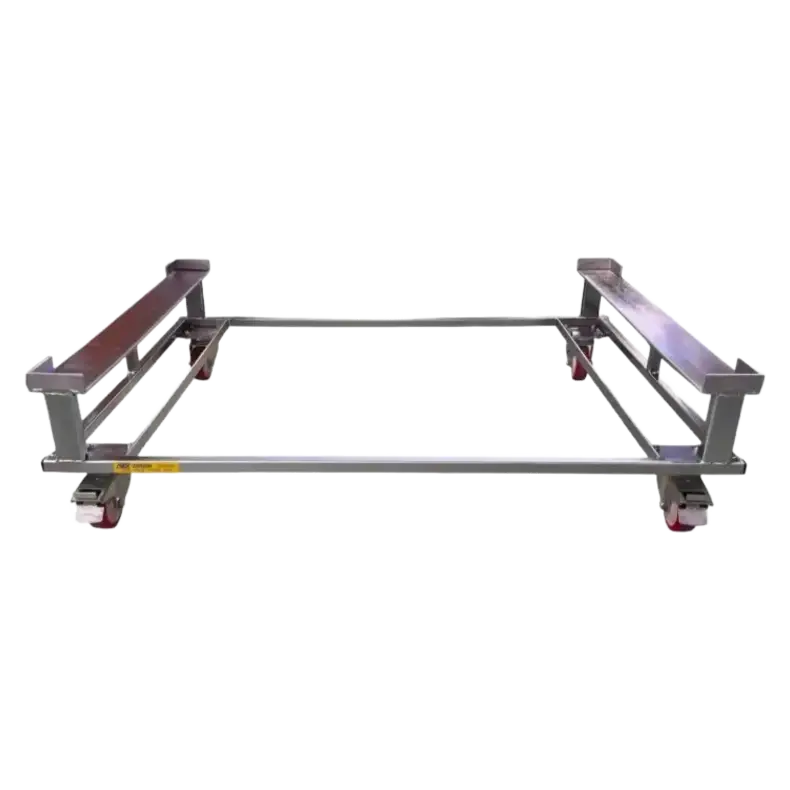

This heavy duty dolly turns a collapsible mesh stillage into a mobile unit. Sit the stillage on the base and wheel it by hand, instead of dragging it across the floor or tying up a forklift every time it moves.

Rex builds it here in New Zealand to carry our collapsible mesh stillages and cages. The stillage locates into the raised side rails so it cannot slide off, and it rolls on four 100mm polyurethane castors, two of them braked. Zinc plated throughout and rated to 600kg.

Built to Hold the Stillage, Not Just Carry It

The raised side rails are the point. Your stillage feet sit down inside them, so the cage stays put when you push, corner, or stop. No strapping and no bolting.

Braked Castors That Stay Put

Four 100mm polyurethane castors run quiet and will not mark a sealed floor. Two are braked, so a loaded stillage holds its spot on a slope or a busy floor. Each castor is rated to 200kg, giving the dolly a 600kg working load, matched to the stillages it carries. It runs on 100mm urethane swivel and braked castors.

Sized for the XL, Built to Order for the Rest

This dolly suits our Collapsible Mesh Stillage XL (CMCXL). Running the Small (CMCS) or Large (CMCL), or a stillage from elsewhere? We build these to order in our own workshop, so send us your base size and we will make one to fit.

Key Features

• Dolly NZ made by Rex, not imported
• Locating side rails hold the stillage in place, loaded or empty
• Four 100mm polyurethane castors, two braked
• 600kg working load limit
• Zinc plated finish for a long life indoors or under cover
• Overall size 1260mm W x 950mm D x 300mm H

Please note: this dolly is the wheeled base only. Collapsible mesh stillages are sold separately.
