Bishamon Braked Series Pallet Truck
2000kg Capacity
With Foot-Operated Steering Brake

IDEAL FOR: ramps, uneven floors, chillers, and any operation where a loaded pallet truck needs to stay put. The Braked Series adds a foot-operated brake on the steering wheels, so the truck holds position the moment you need it to.

The Bishamon Braked Series is the trusted 2000kg hand pallet truck, upgraded with an integrated foot brake on the steering caster. Step on the brake pedal and the truck locks in place, giving you controlled, safe handling on slopes, loading docks, and slippery floors where a standard pallet truck can roll away. Available in three fork configurations, precision-built in Japan. We have proudly supplied the NZ market with Bishamon pallet trucks for over 30 years.

The Brake Advantage

The foot-operated brake acts directly on the steering wheels. One press holds the truck steady while you load, unload, or pause on a gradient, then release it just as quickly to move off. It is the difference between a pallet truck that stays where you put it and one that drifts, and it is what sets the Braked Series apart from a standard hand pallet truck.

Choose Your Model

• PT06BRK – Standard: 1220mm x 150mm forks, 520mm overall width, 4-way entry. The all-rounder for standard pallets, including CHEP.
• PT07BRK – Compact: 980mm x 150mm forks, 520mm overall width, 4-way entry. Short forks for tight aisles, congested stockrooms, and smaller pallets.
• PT08BRK – Wide: 1070mm x 150mm forks, 685mm overall width, 2-way entry. Wide forks for oversized or non-standard loads.

Key Features

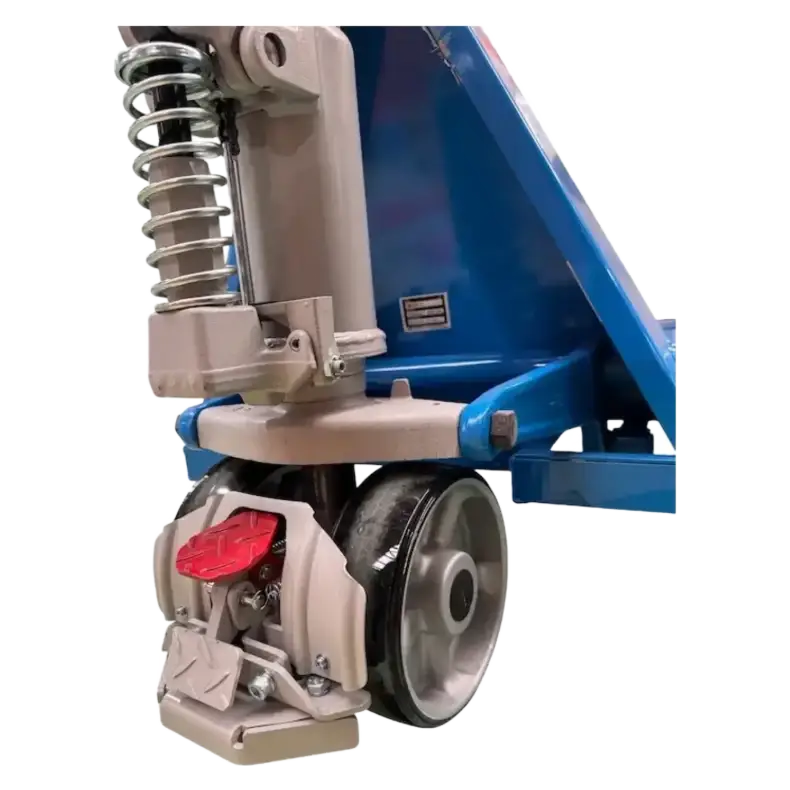

• Foot-Operated Steering Brake: Locks the steering wheels in one press. Holds the loaded truck steady on ramps, docks, and uneven floors.
• Three-Position Hand Lever: Lift, lower, and neutral from any handle position, with a 210° swivelling handle for operator comfort.
• Built To Last: High-strength steel, continuous welds, one-piece formed forks with reinforcement plate, and a formed steel entry slide that protects against debris.
• Rebuildable Hydraulics: The hydraulic assembly and frame are designed to be serviced, not scrapped. Consumable and major parts held at our own repair shop for fast servicing.
• Smooth Operation: Polyurethane wheels, high-capacity load rollers, low-friction bearings, and a durable baked enamel finish.

Why Choose Bishamon?

Major supermarkets, retail chains, warehouses and logistics operators across NZ rely on Bishamon to keep their day-to-day on track. Rebuildable hydraulics and parts held at our own repair shop mean the truck stays in service instead of being replaced. Backed by a 12-month warranty.
